Children’s day-care facilities, Frankfurt am Main
Building block design

On the basis of a design award from 2009 we developed a modular design system for childcare facilities for the the City of Frankfurt on the Main. The system meets the passive house standard, and has been realised on altogether five different sites: in Riedberg, Harheim, Fechenheim, Eckenheim-Nord and Sachsenhausen. The two-storey buildings have been consistently designed and built as timber constructions on a grid of 62.5 cm. This project series particularly benefits from the advantages of the timber construction.

Each facility provides plenty of space for the nurturing and development of around 100 to 120 children aged 0 to 14. All in-house activities hinge on the central “village square”. The extraordinarily pleasant atmosphere of the interior and exterior spaces of the village square has been achieved through its balanced air space, and the floating glass roof. The change of day time and seasons is perceptible on the inside. A laminated timber girder filters the incident light, and creates a pleasantly natured mood inside. Reminiscent of a windmill, eight “building blocks” are arranged over two storeys around the village square. These accommodate the group rooms and other building areas. The attached steel-structure loggia serves as transition area from inside to outside. A wide textile screen for sun protection spans between the steel pillars. The design of the continuous loggia casually fulfils the stringent fire protection requirements.

Client: City of Frankfurt am Main
Planning and construction: 2010-14
GFA and GV: 1.220 m², 6.360 m³ per project

Competition 2009, 1st prize
best architects 14 award

Photographs: Eibe Sönnecken, Darmstadt

K96 IMG 3181
K96 IMG 3345c
K96 IMG 3345a

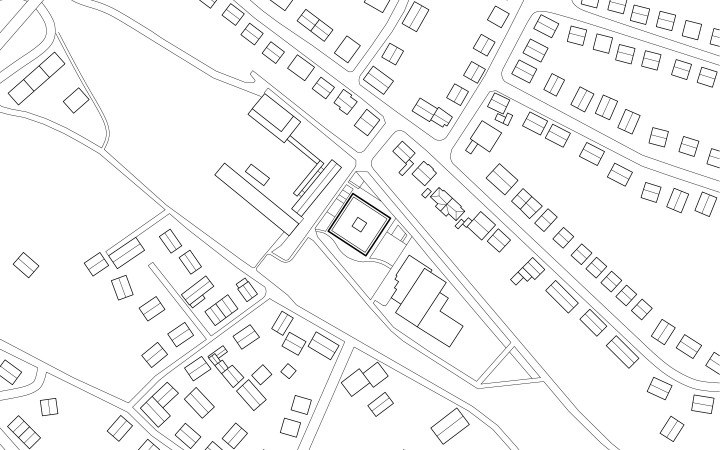

K96 site 500
K96 MG 9752b
K96 MG 9688
K96 MG 0102
K96 MG 9612
K96 IMG 3520a
KSA IMG 9799a
KSA IMG 1052
KSA IMG 0770
KSA IMG 1620
KSA IMG 6741
KSA IMG 6581
KSA IMG 6024

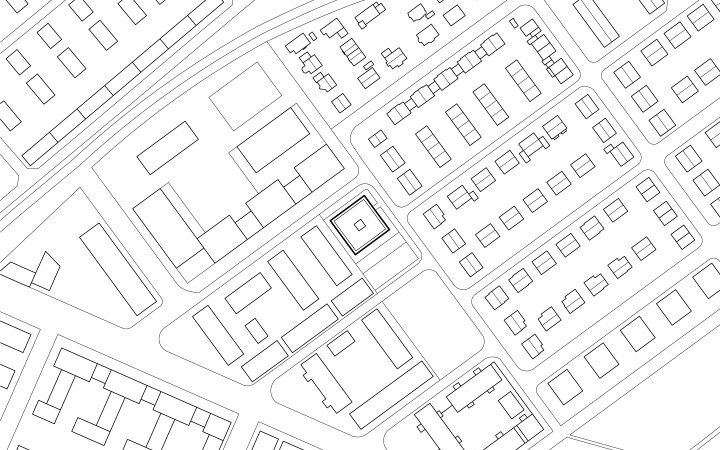

KSA site 500

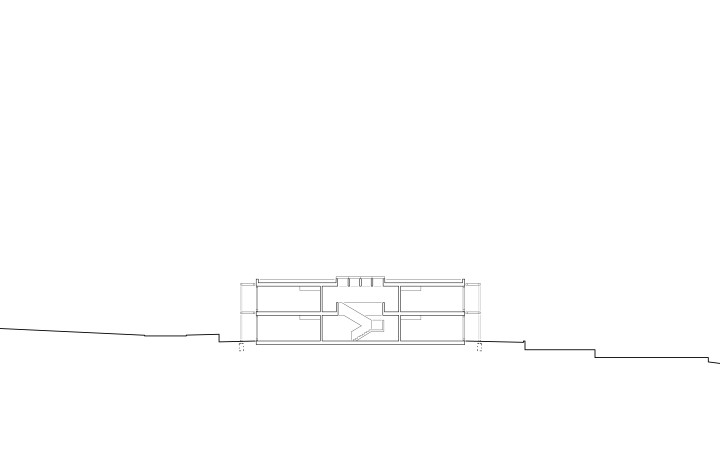

KSA sec aa 100

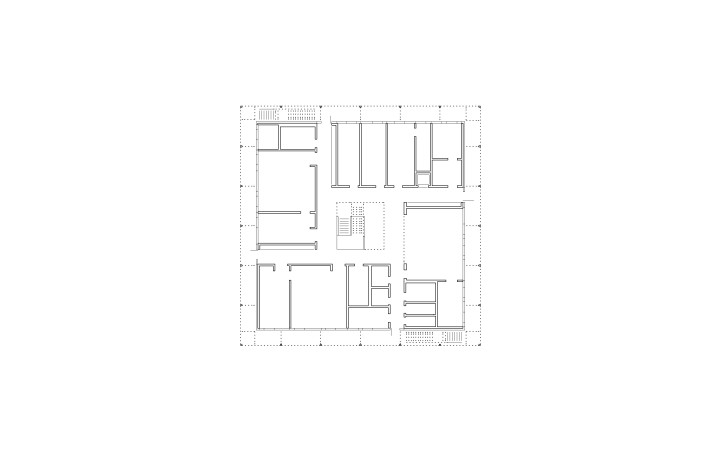

KSA pln EG 100

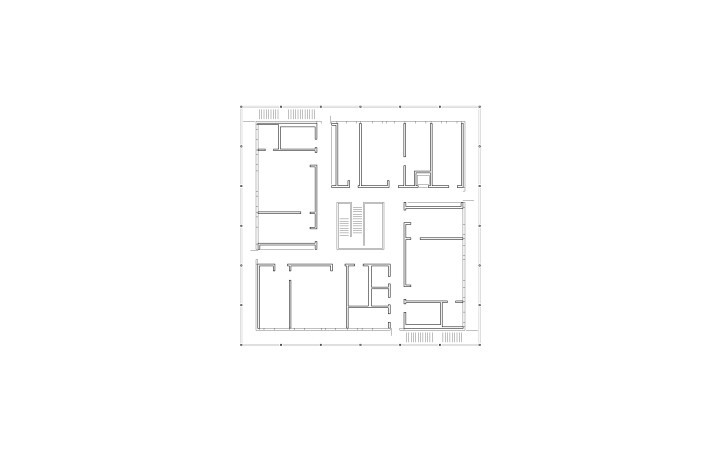

KSA pln OG 100
