Regional Innovation Centre for Energy Technology, Offenburg University

The Regional Innovation Centre for Energy Technology (RIZ) launches the project of the new campus. The clear-cut building volume of the Regional Innovation Centre for Energy Technology (RIZ) at the street corner Badstraße / Südring marks the entrance to the new campus. Towards Badstraße, the building appears as a largely closed structure, whilst in the west, a large open façade faces the future North Campus. A generous, angled recess on the west façade guides pedestrians approaching from the old campus through the underpass to the main entrance.

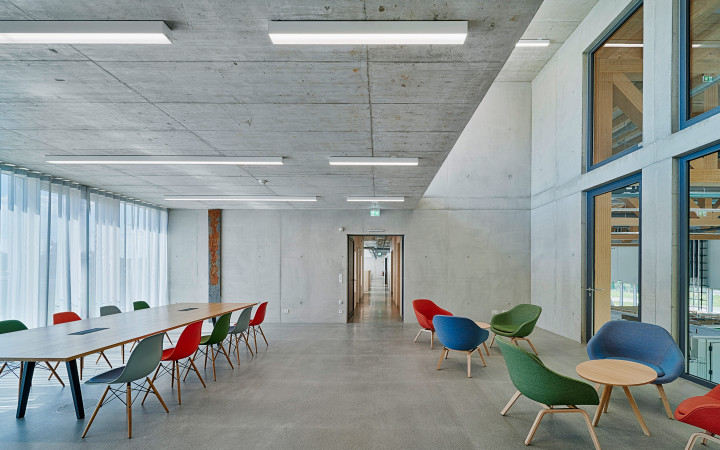

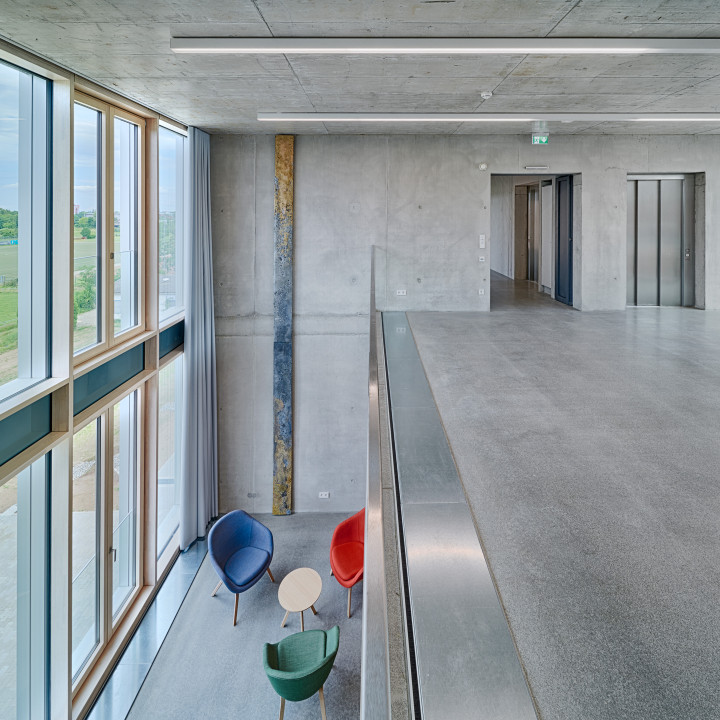

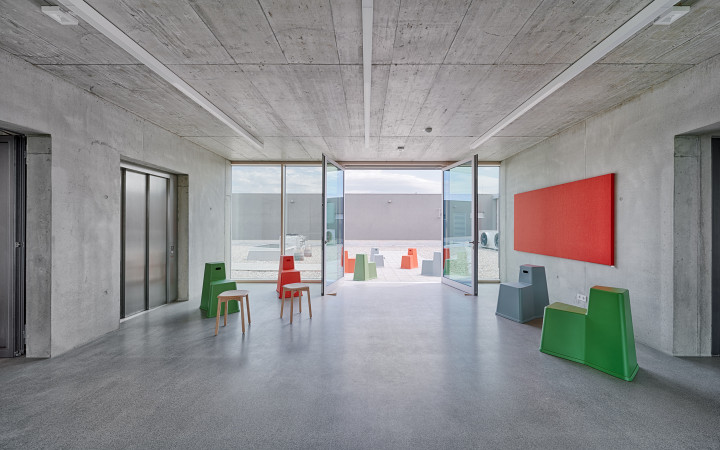

The building comprises a multi-storey research wing with offices and a directly adjacent test lab (technical centre). The office workplaces are located in a clearly structured room cluster that faces west, overlooking the campus and the nearby Kinzig. Located between the technical centre and the research workplaces is an area of circulation and ancillary rooms that repeatedly provides views into the hall. Lines-of-sight connecting the campus outside with the hall inside emphasize the dialogue and the solidarity of an interdisciplinary team of researchers. As a special feature, so-called research zones were created in the office wing, which are connected via voids and stretch across the three upper floors. This results in a vertically floating space that allows for flexible occupation and offers various lines-of-sight. On the roof of the technical centre is an outdoor lab that can be accessed directly from the building.

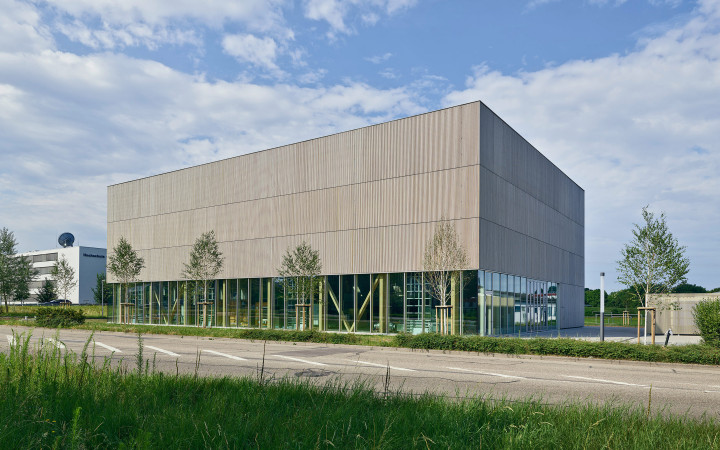

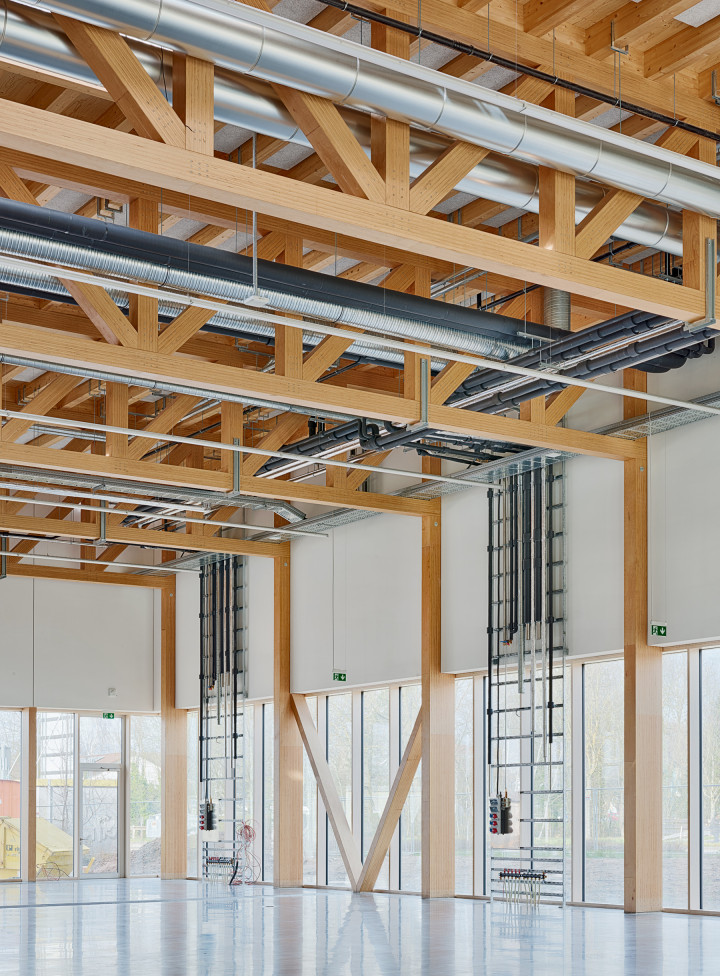

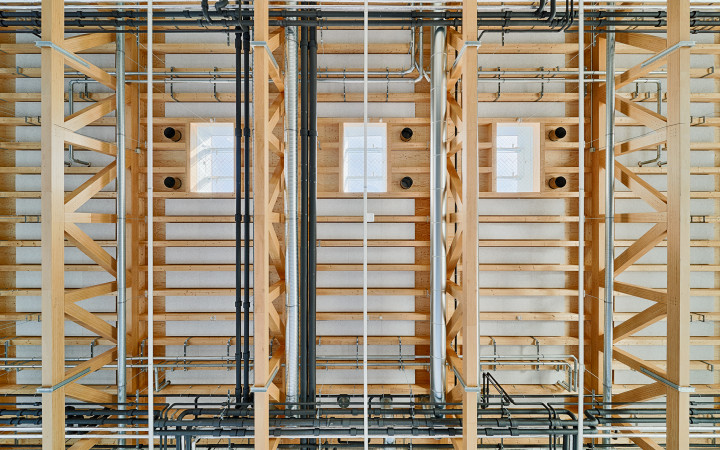

Pillars and truss girders made of local beech form the supporting structure of the technical centre; the span is around 18m. Laminated beech veneer wood is a high strength building material. The office wing comprises a reinforced concrete frame construction, the solid cores brace both parts of the building. For the façade, wood appeared to be the consistent continuation of the material canon and thus a judicious solution. The outer walls are of passive house quality, they are designed as a timber frame construction, clad with grey varnished scantling of silver fir.

Integral planning of the building design and the energy concept focused on energy efficiency, high quality workplaces and an innovative laboratory concept. A photovoltaic system on the roof of the office wing uses as much renewable energy that the primary energy requirements according to EnEV are undercut by around 70%.

Client: Vermögen & Bau BW, Freiburg
Planning and construction: 2015-20
GFA and GV: 2.600 m², 15.550 m³

Competition 2015, 1st prize
BDA Hugo-Häring-Auszeichnung 2020
German University Building Award 2022

Photographs: Bernhard Strauss, Freiburg im Breisgau

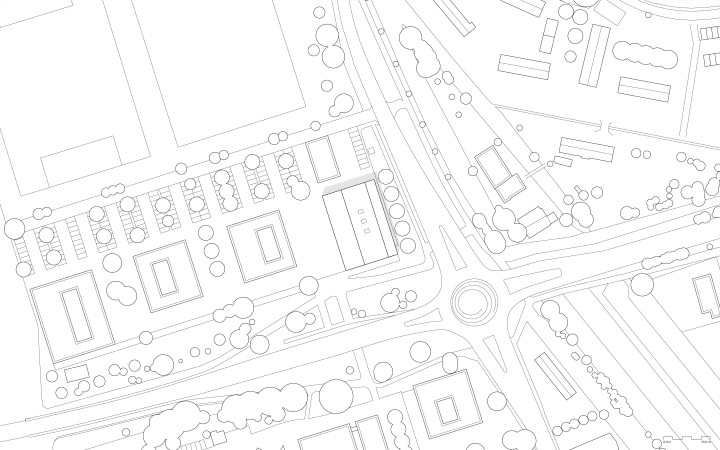

RIZ BHundF site

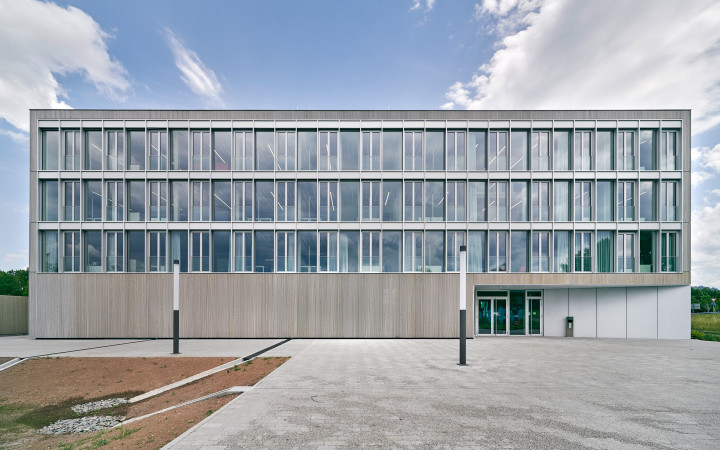

RIZ final 19 bearb
RIZ final 17 NEU

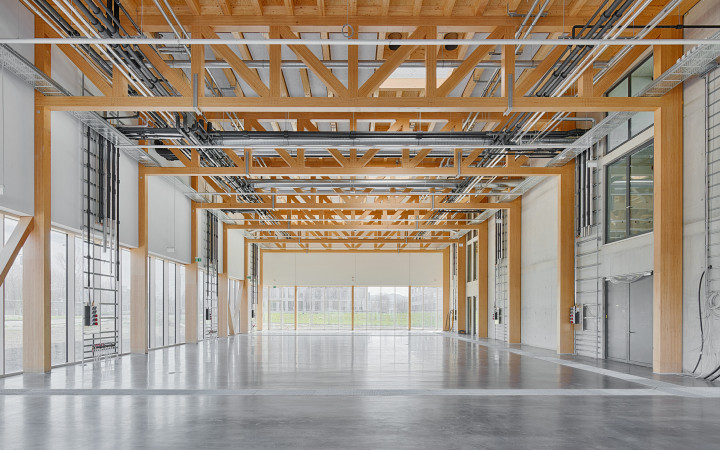

BHundF RIZ OG Technikum Teil2 06

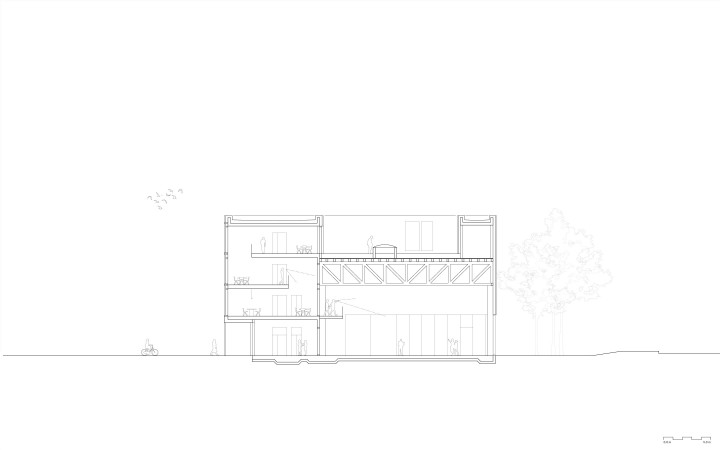

RIZ BHundF sec aa v3

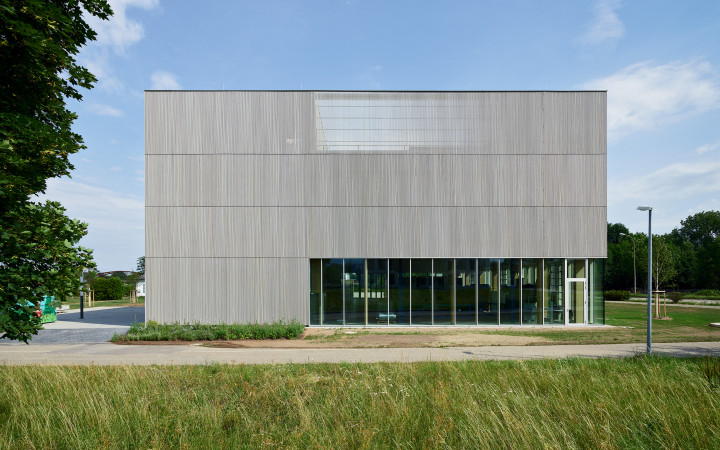

RIZ final 25 v2

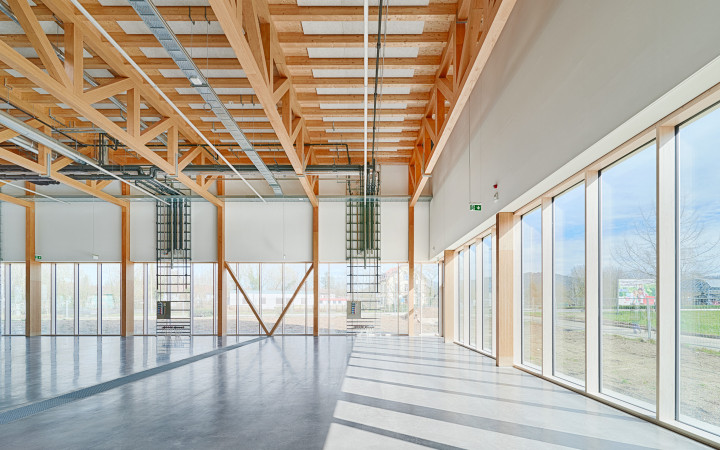

BHundF RIZ OG Technikum Teil2 03 v2
BHundF RIZ OG Technikum Teil2 04
BHundF RIZ OG Technikum Teil2 25

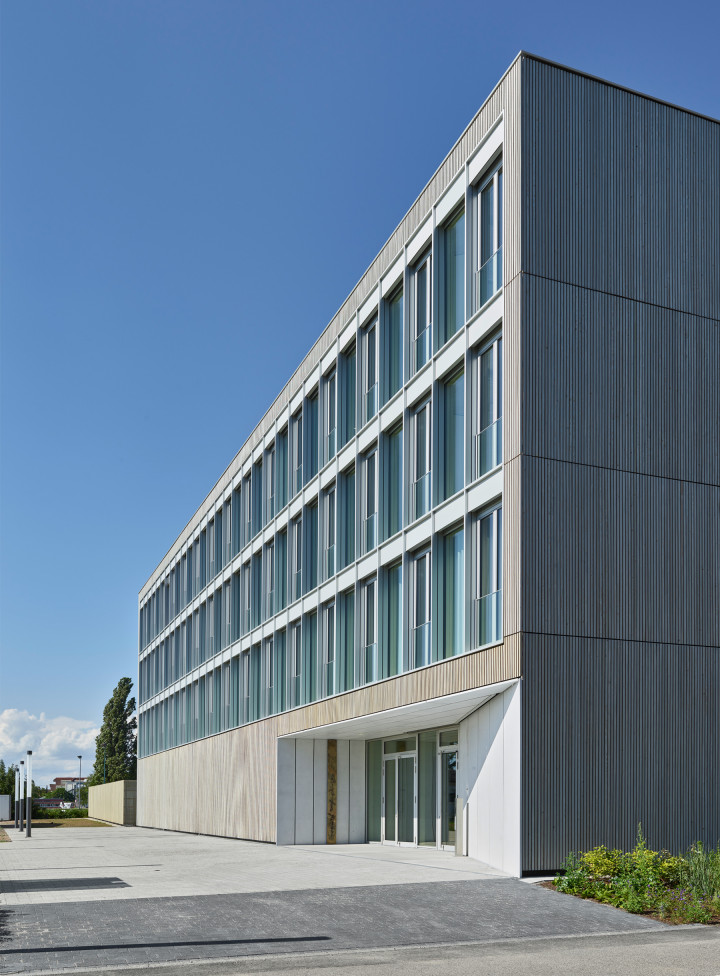

RIZ final 47 bearb

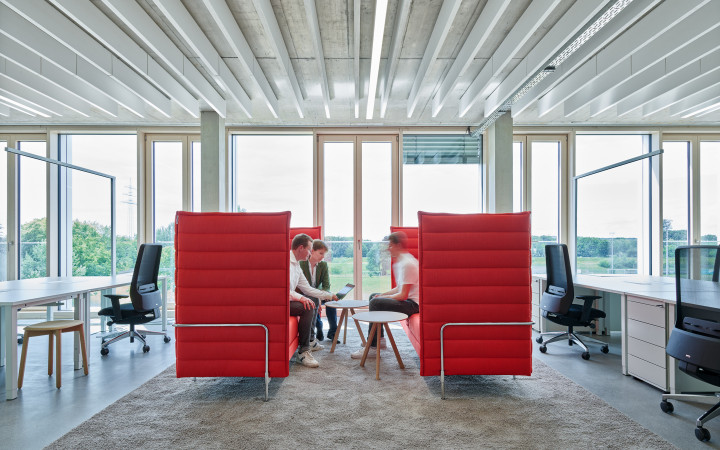

RIZ final 33

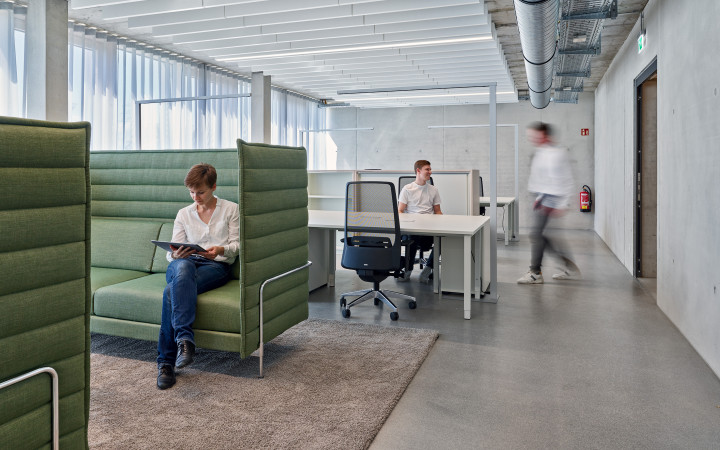

RIZ final 40
RIZ final 21
RIZ final 66
RIZ final 65

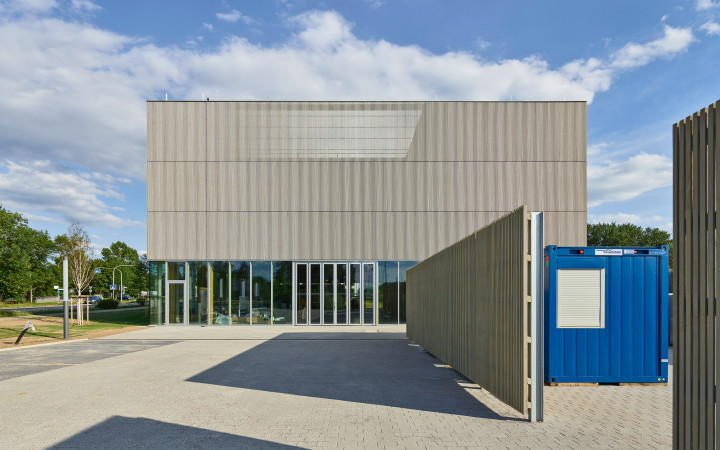

RIZ final 54
